Out of Stock
SKU
16-VMFAXA-P
Pivot Front Axle Assembly
- Weight saving front axle is lighter than factory
- Axle works to lower the front end of your tractor
- Designed for a Cub Cadet wide frame chassis
$251.12
Out of stock
Details
Weight saving front axle is lighter than factory and works to lower the front end of your tractor.
- Built by Doug Rood of Rood Dawg Chassis Worx.
- Steel construction.
- Built from 1″ x 2″ rectangular tubing.

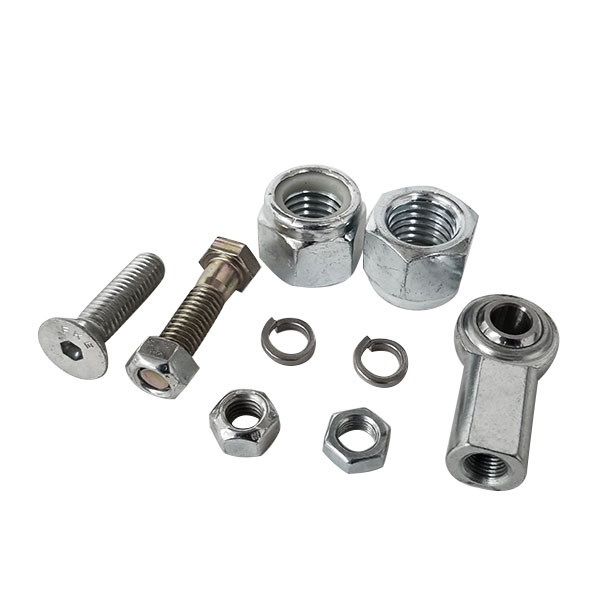

- Grade 8 hardware.

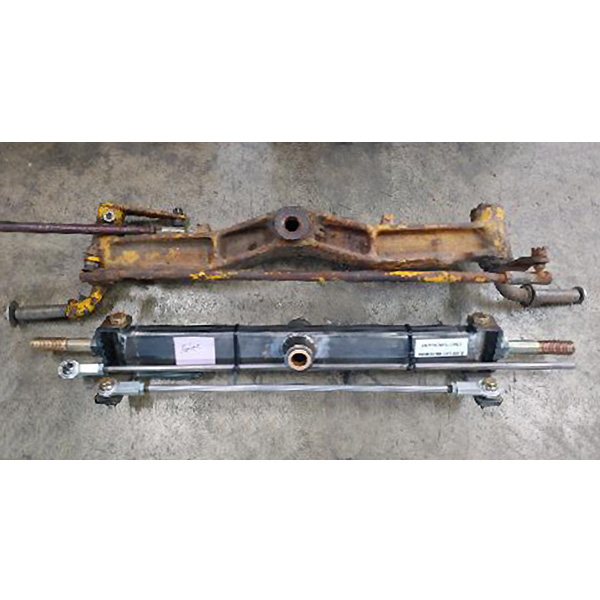

- Weight: 8 lbs. – compare to a stock cast axle assembly which weighs 23 lbs
- Spindle flange to spindle flange length: 21 inches.
- Overall length tip-to-tip: 29 inches
- 3/4″ spindles that are 4″ long; can be cut to suit.
- Spindles are mounted at an angle to compensate for the rake of the chassis.
- Universal use for any chassis up to 16″ wide at front.
