16-VMFAXA-SOLIDWIDEWELDON
Solid Weld On Front Axle Assembly – Wide Frame
- Weight saving front axle is lighter than factory
- Axle works to lower the front end of your tractor
- Designed to be welded or bolted to a Cub Cadet wide frame chassis
$222.10
Out of stock
Details
Weight saving front axle is lighter than factory and works to lower the front end of your tractor.
- Built by Doug Rood of Rood Dawg Chassis Worx.
- Steel construction.
- Built from 1″ x 2″ rectangular tubing.

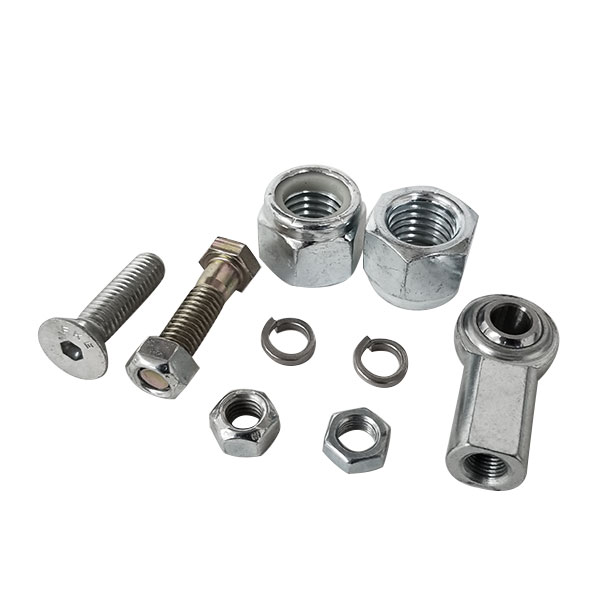

- Grade 8 hardware.
- Weight: 8.5 lbs. – compare to a stock cast axle assembly which weighs 23 lbs
- Spindle flange to spindle flange length: 25 inches.
- Overall length tip-to-tip: 32 inches
- 3/4″ spindles that are 4″ long; can be cut to suit.
- Spindles are mounted at an angle to compensate for the rake of the chassis.
- Designed to be welded or bolted to a Cub Cadet wide frame chassis.
