VM Aluminum Rear Wheels 12 x12 (5+7 Offset)

• Polished Aluminum 12×12 Wheels (5+7 Offset)
• Chrome Valve stems included
• Sold in pairs

Wheels weigh about 8 pounds each.

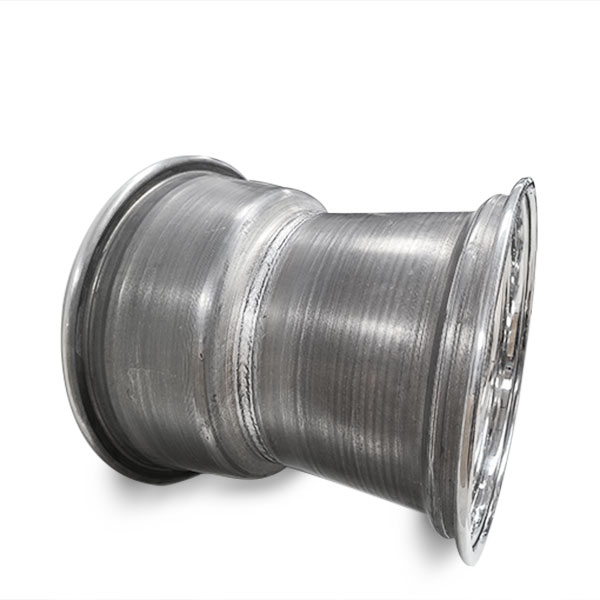

The CNC spun aluminum wheel begins with a 4mm (0.156″) thickness. The inside is a large diameter smooth i.d. and the outside section is a deep lip with a large diameter opening with a chamfered outer edge to the bead. They are combined with a center plate and pressure tested for leaks at the weld.

The (5+7) offset wheel WILL accomodate stock cub-cadet external axle brakes.

The bolt pattern is (5) 0.505″ diameter bolt holes on a 4.5″ diameter bolt circle. There is a 2.75″ diameter hole through the center of the wheel inside the bolt pattern.
This is the stock cub-cadet bolt pattern as well as many Ford vehicles.

Heavy-duty bead locks.

If losing clearance creates a problem, you would need run the appropriate spacers on the axle to widen the wheelbase back to acceptable clearances.
